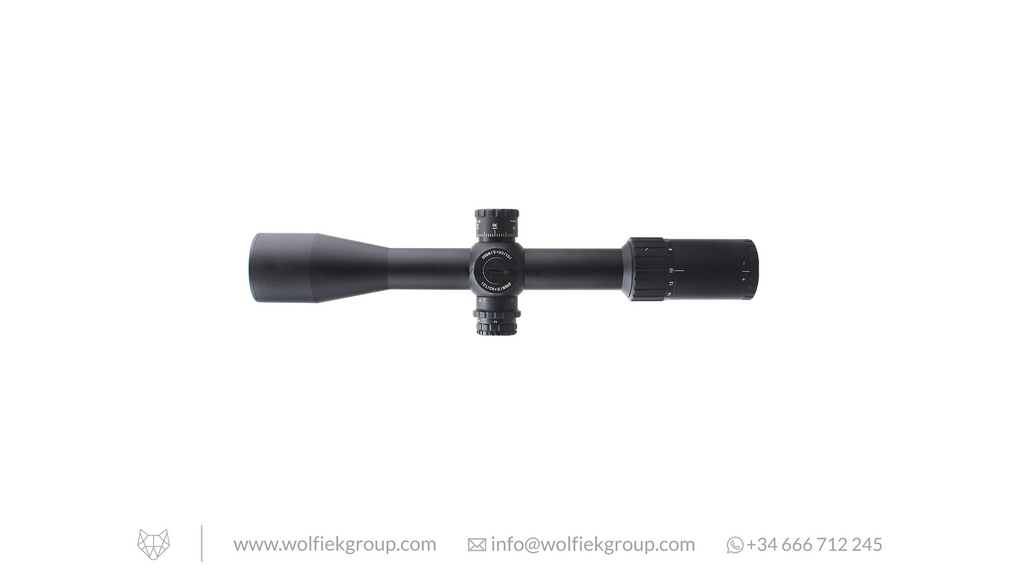

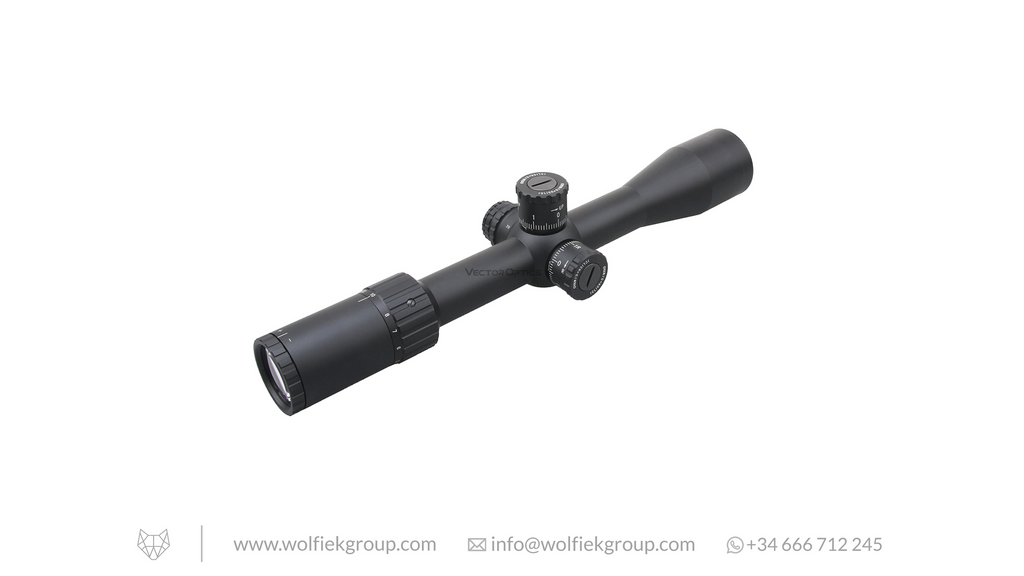

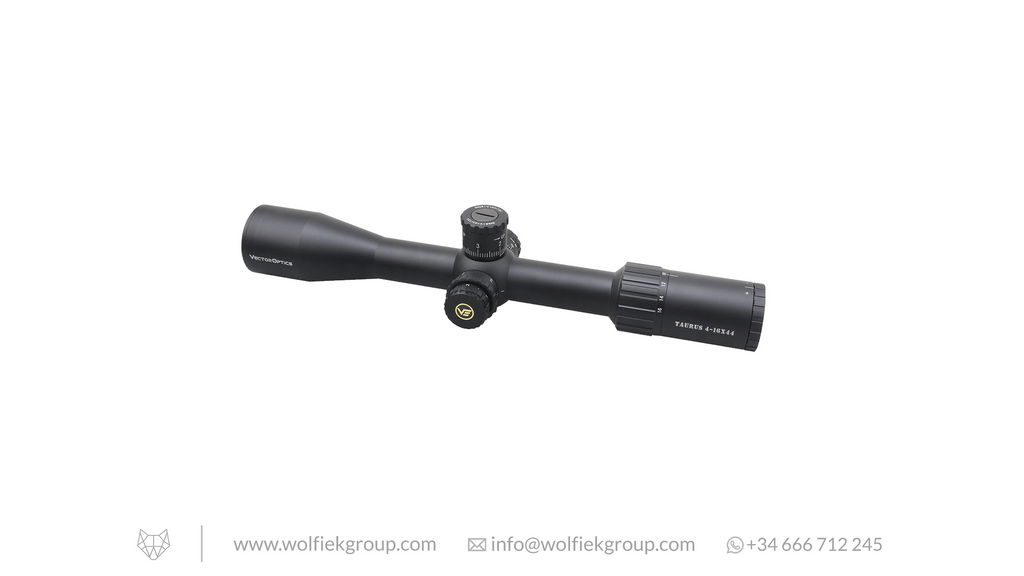

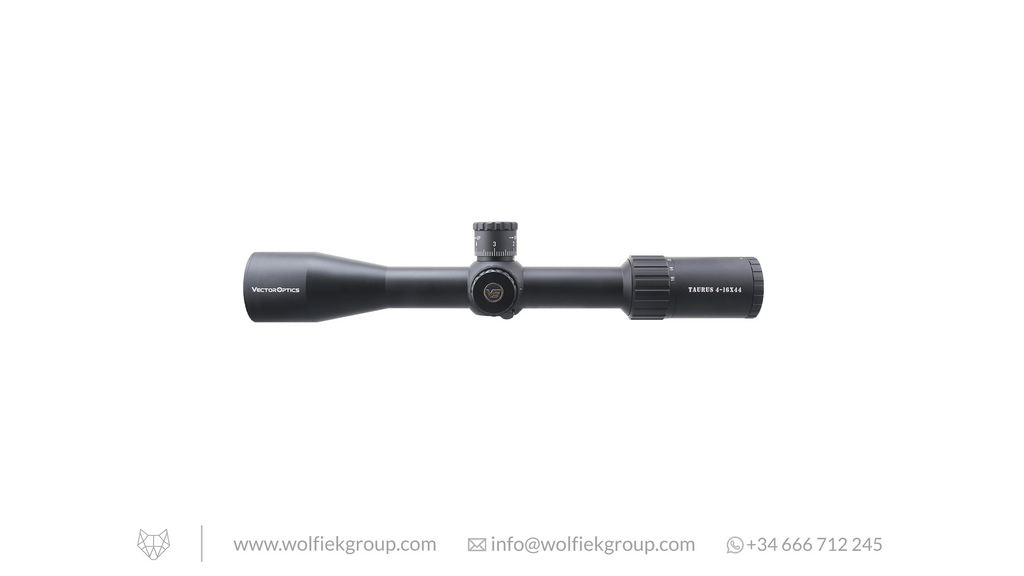

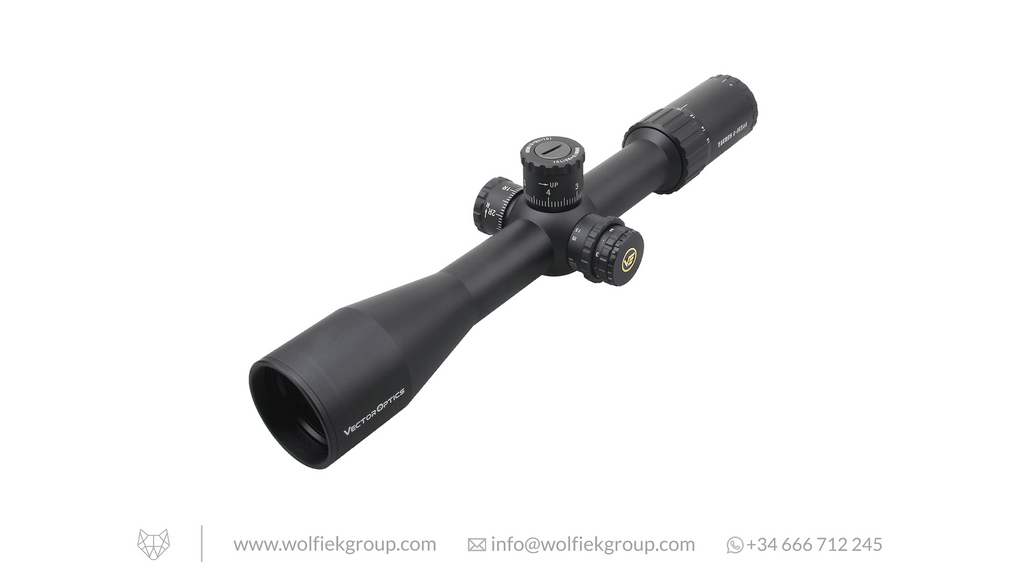

Vector Optics · Taurus 4-16x44 HD SFP

€297,00 - €317,00

Item: SCOL-45

Magnification: 4-16x
Objective Lens Dia: 44mm
Ocular Lens Dia: 38mm
Ocular Lens Length: 62mm
Exit Pupil: 10.0-2.75mm
Optics Coating: Diamond Fully-Multi HD
Field of View: 5.0-1.25°
Field of View: 26.2-6.55ft@100yds
Eye Relief: 94mm / 3.7in

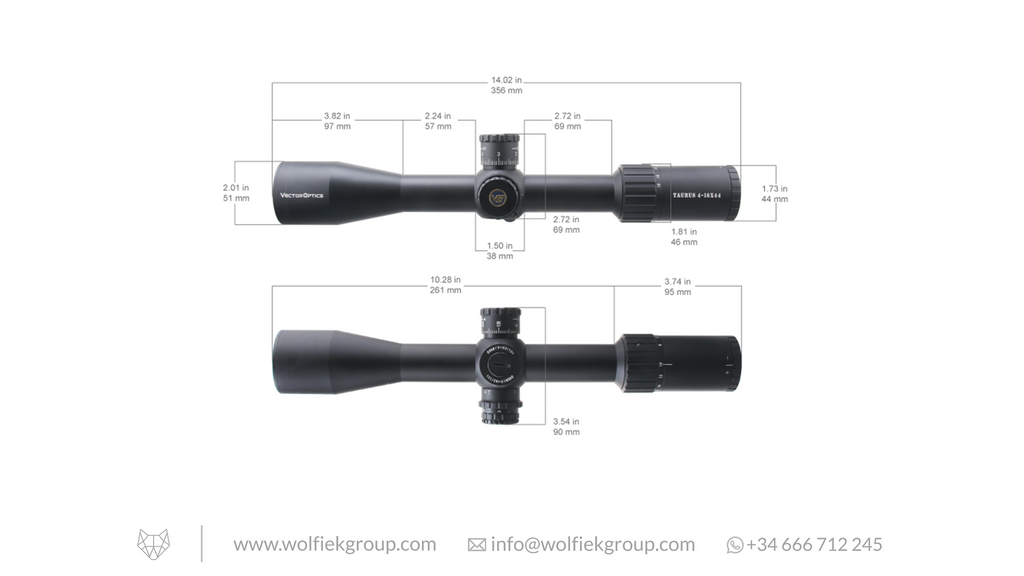

Length: 356mm / 14.0 inch
Weight: 730g / 25.7 oz
Tube Dia.: 30mm
Click Value: 0.1 MRAD, 1/10 MIL, 1cm
Elevation Range: 24MIL (80MOA)
Windage Range: 24MIL (80MOA)
Parallax Adjustment: 20yds to infinite

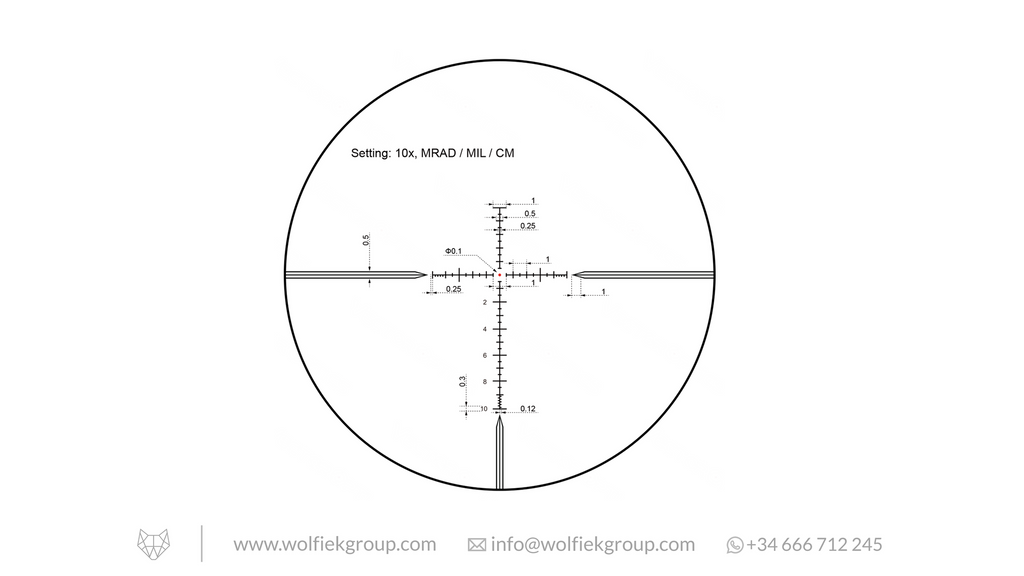

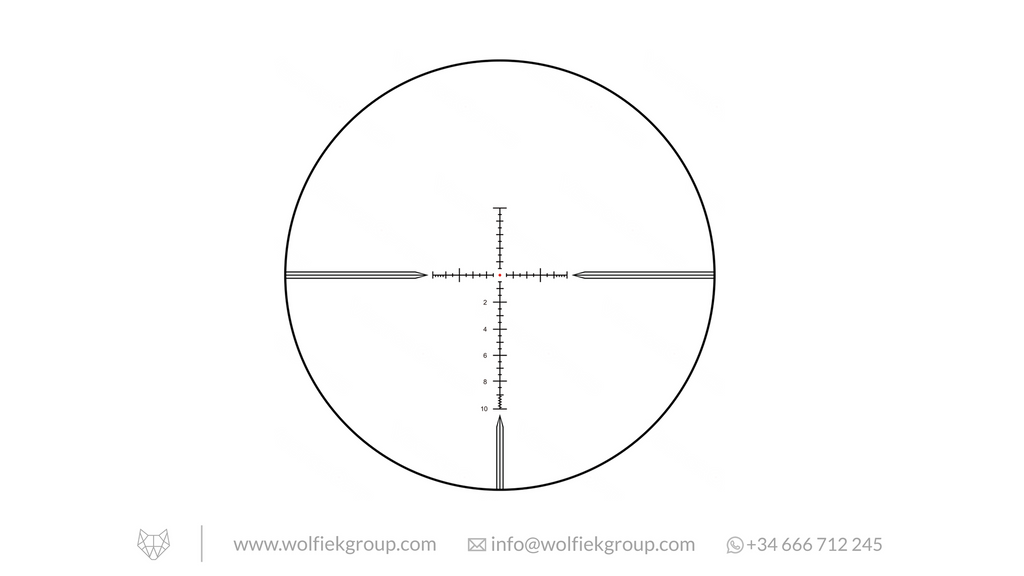

Reticle: Etched Glass MPX1
Illumination: 6 levels red
Battery Type: CR2032
30mm hammer-forged aluminum monotube design
Side focus mark: 20, 25, 30, 40, 50, 60, 75, 100, 150, 200, 300, 500 and infinite
Shock tested to 1000g, water proof and fully nitrogen filled

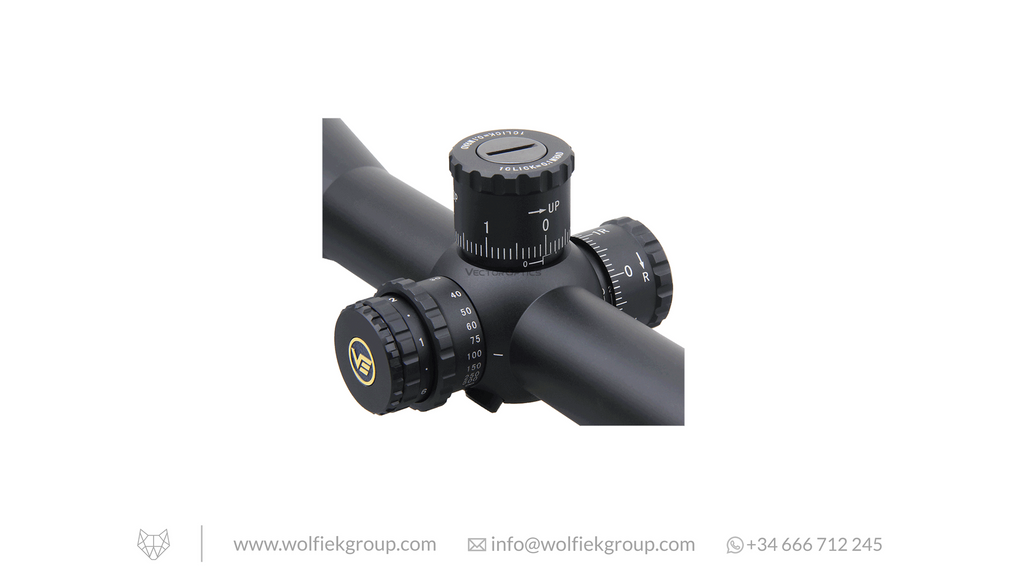

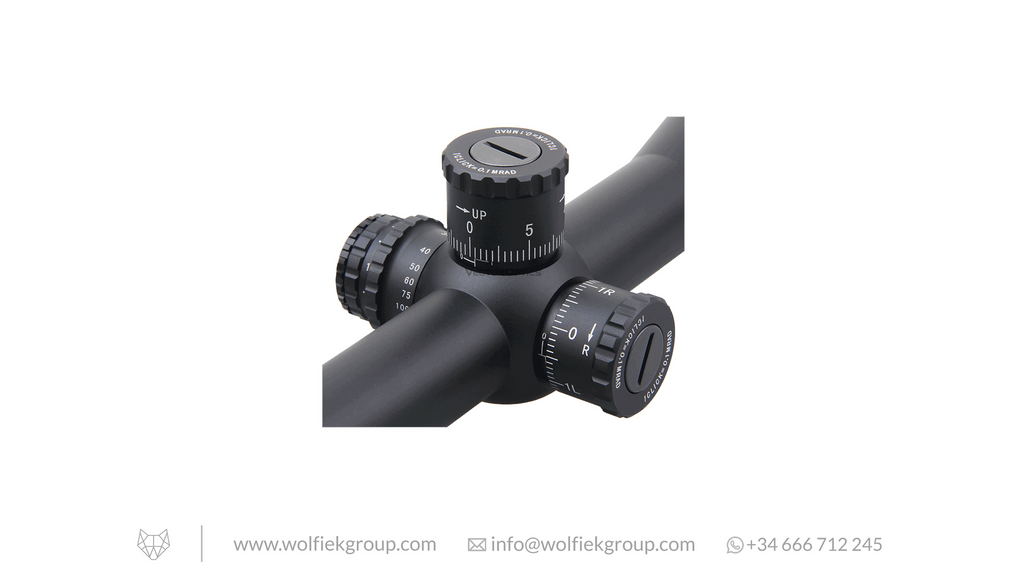

Zero-stop turret system with up and down travel
Water proof IP67 for 30min 1 meter depth water
Diopter compensation from fast-focus eyepiece -2 to +2
Including items: cleaning cloth, instruction and lens cap
Optional: Weaver or Dovetail rings
