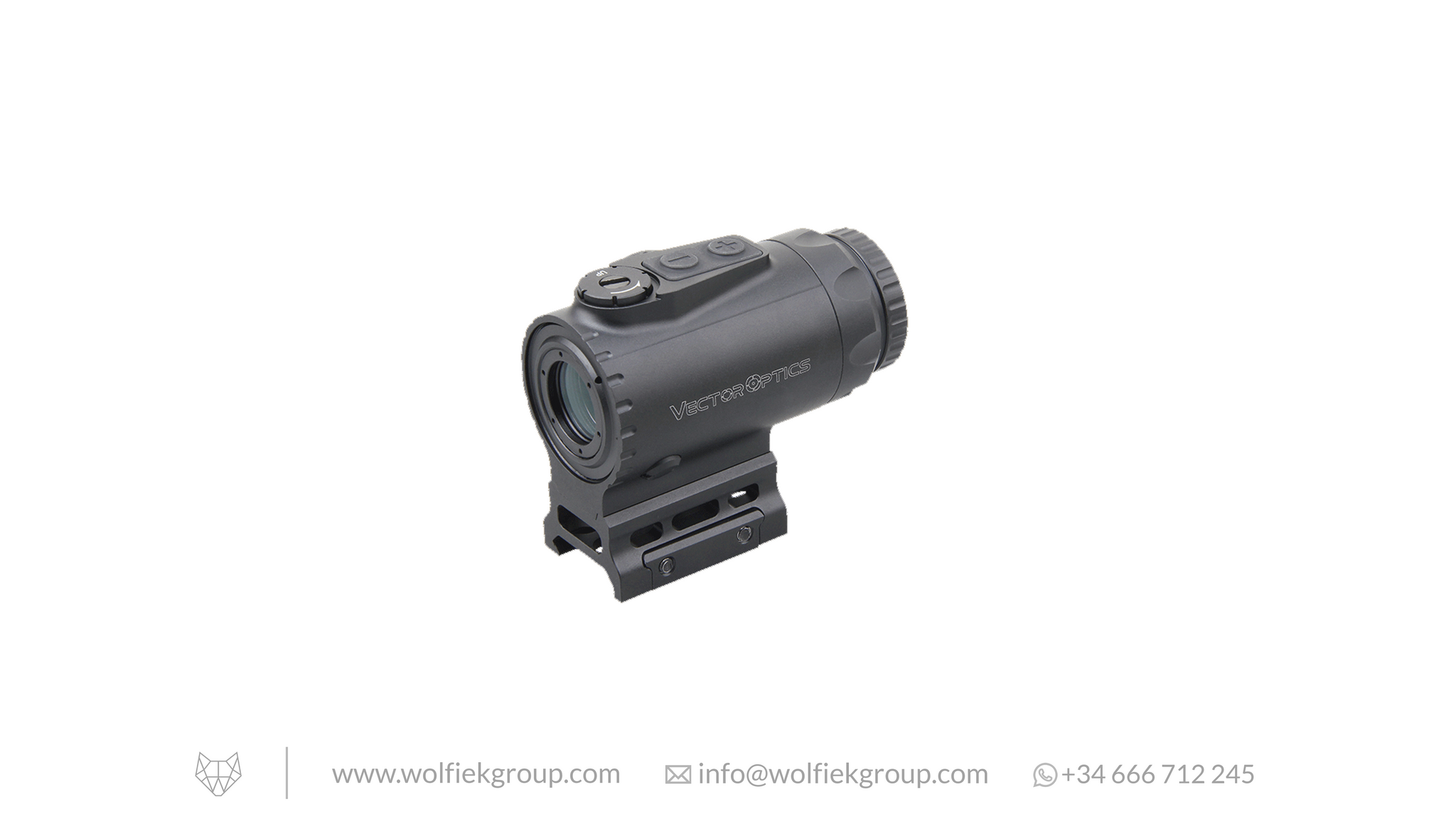

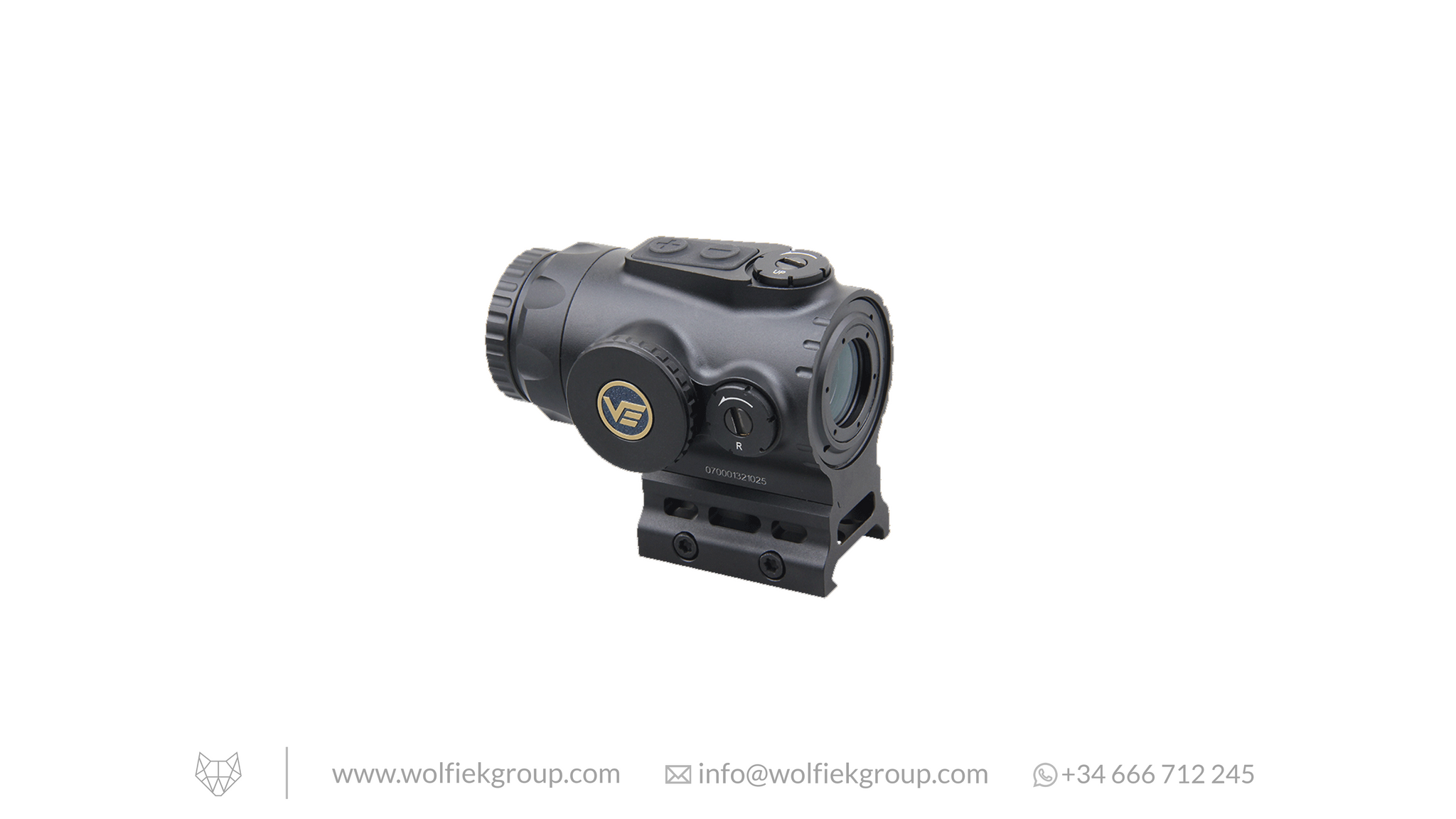

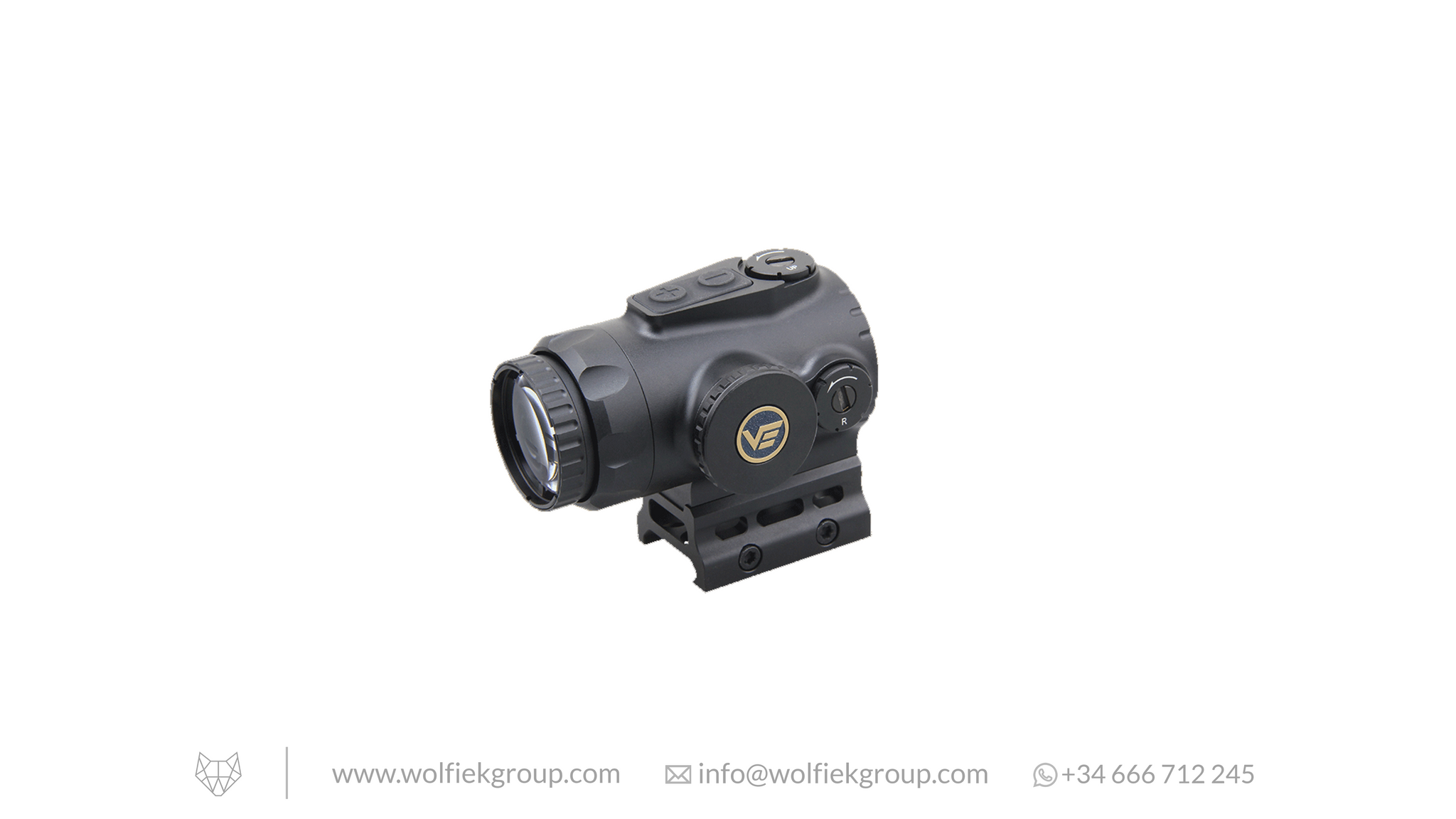

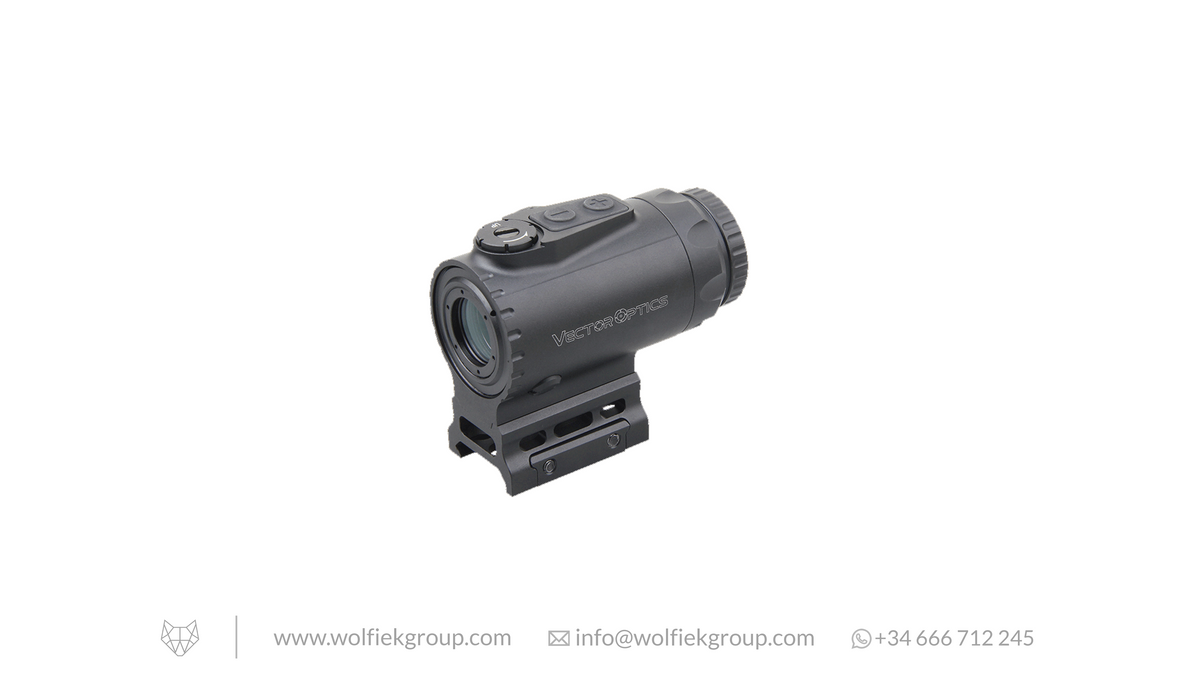

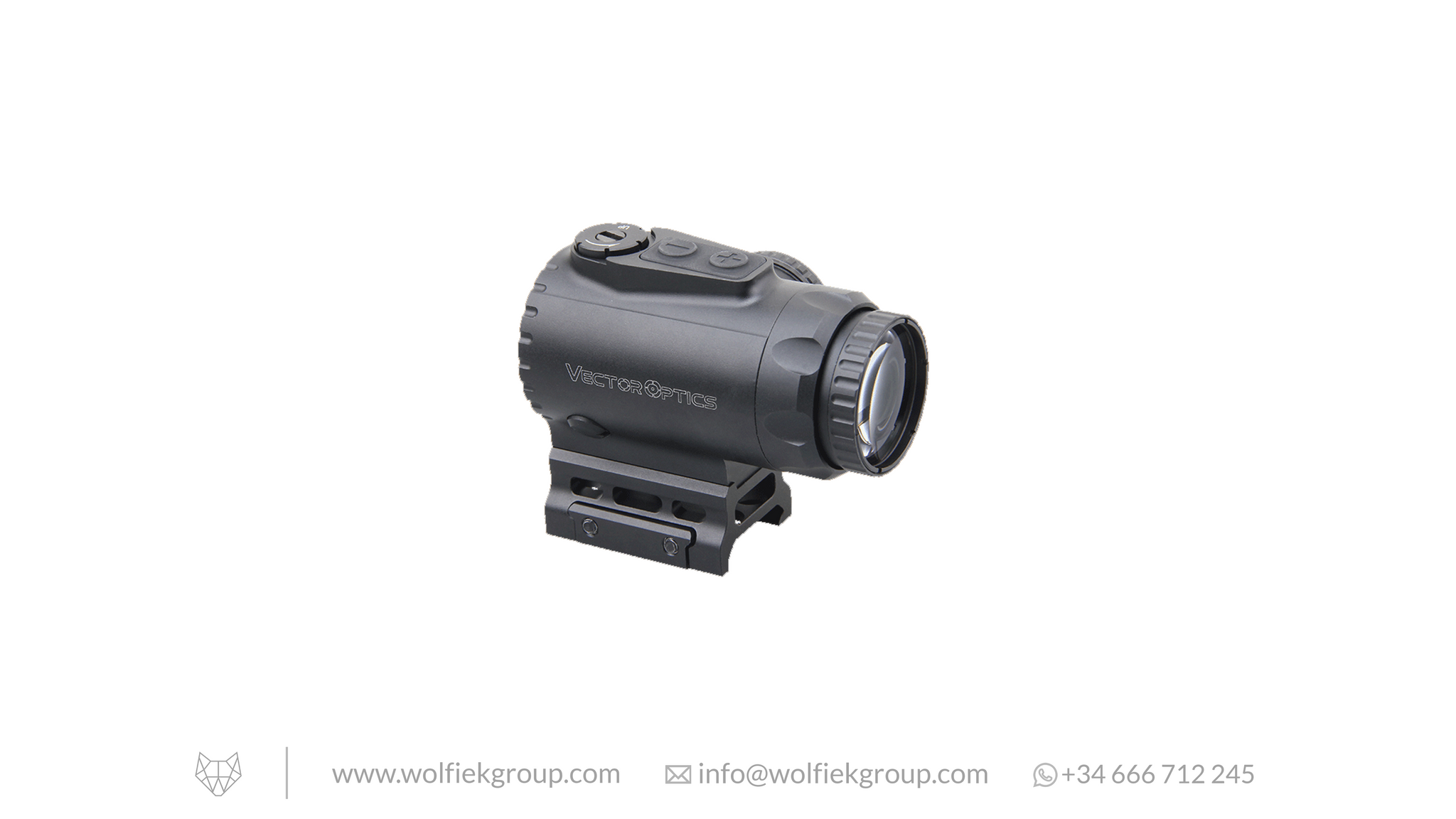

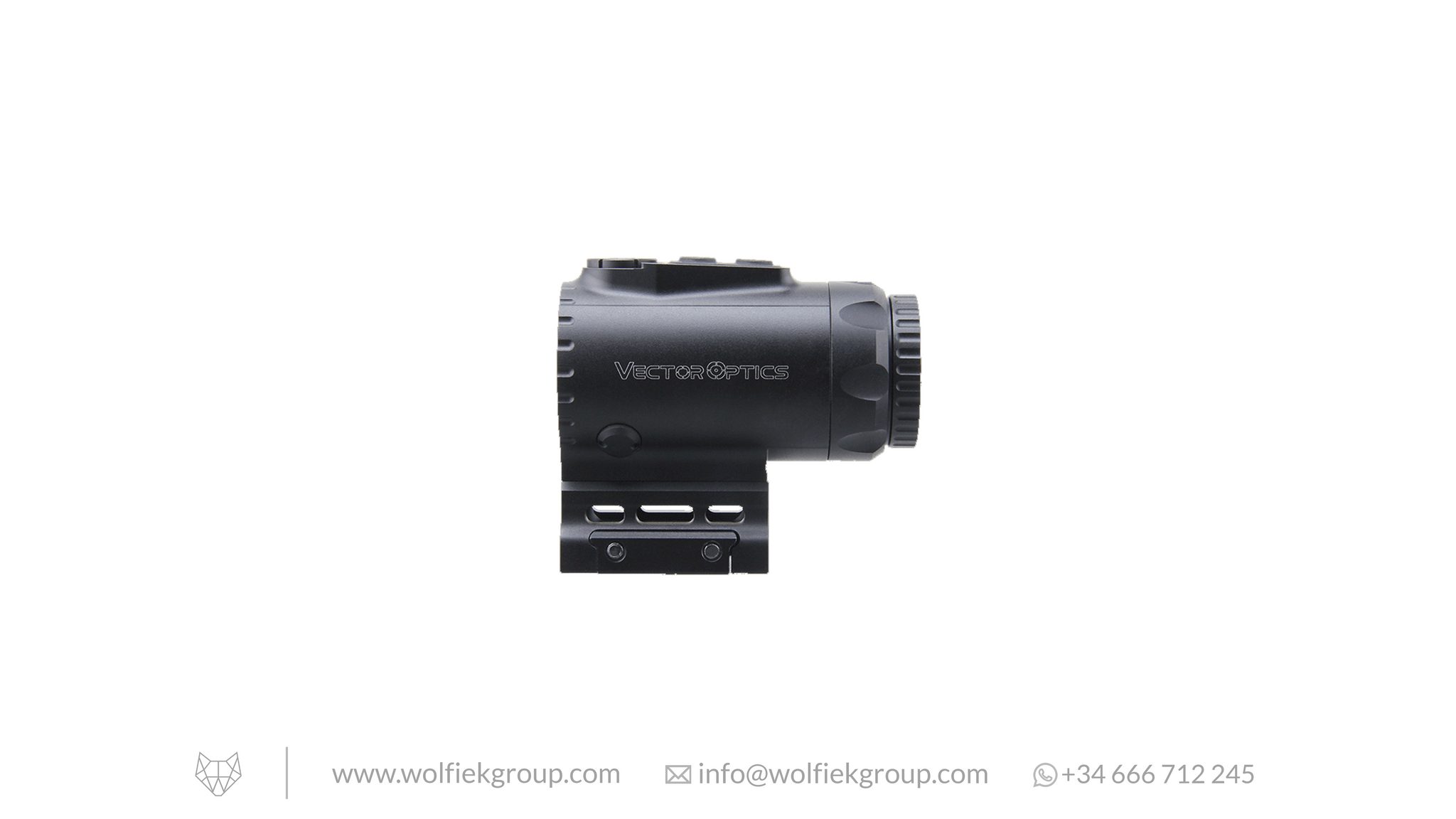

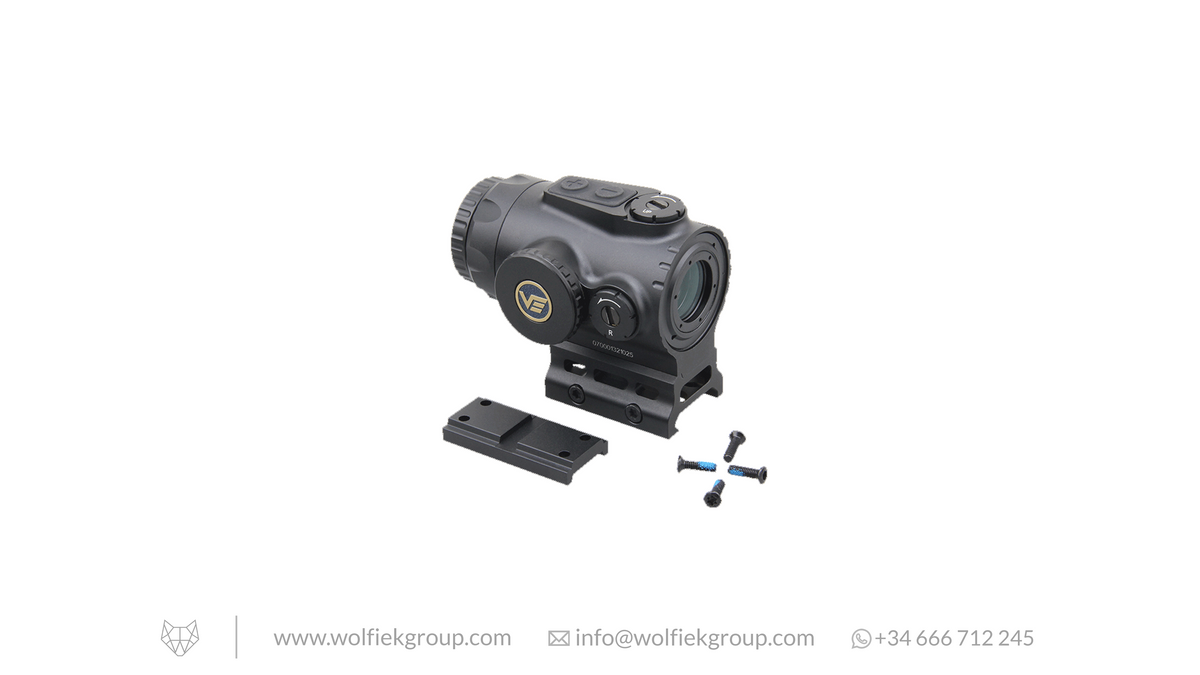

Vector Optics · Paragon 1x16 Micro Prism

Item: SCPS-M01

  • Magnification: 1x
  • Objective Lens: 16mm
  • Exit Pupil: 15mm
  • Optical Coating: Fully multi coated
  • Field of View: 14.5°
  • Field of View: 25.4m @ 100 meters
  • Field of View: 76.3ft @ 100 yards
  • Eye Relief: 76mm / 3.0in
  • Click Value: 1MOA
  • Elevation Range: >40MOA
  • Windage Range: >40MOA
  • Height: 36mm (1.41") from bottom to center
  • Length: 75mm / 3.0in
  • Weight: 225g / 7.9oz
  • Reticle: Etched glass VEP-CDR
  • Parallax Setting: 100 yards
  • Finish: Black matte
  • Illumination: 10 levels red
  • Battery Type: CR2032
  • Shock proof and fog proof (nitrogen filled)
  • High quality aluminum alloy in durable black matte finish
  • Fast focus eyepiece at ocular lens adjustment -2 to 2
  • 21mm picatinny mount

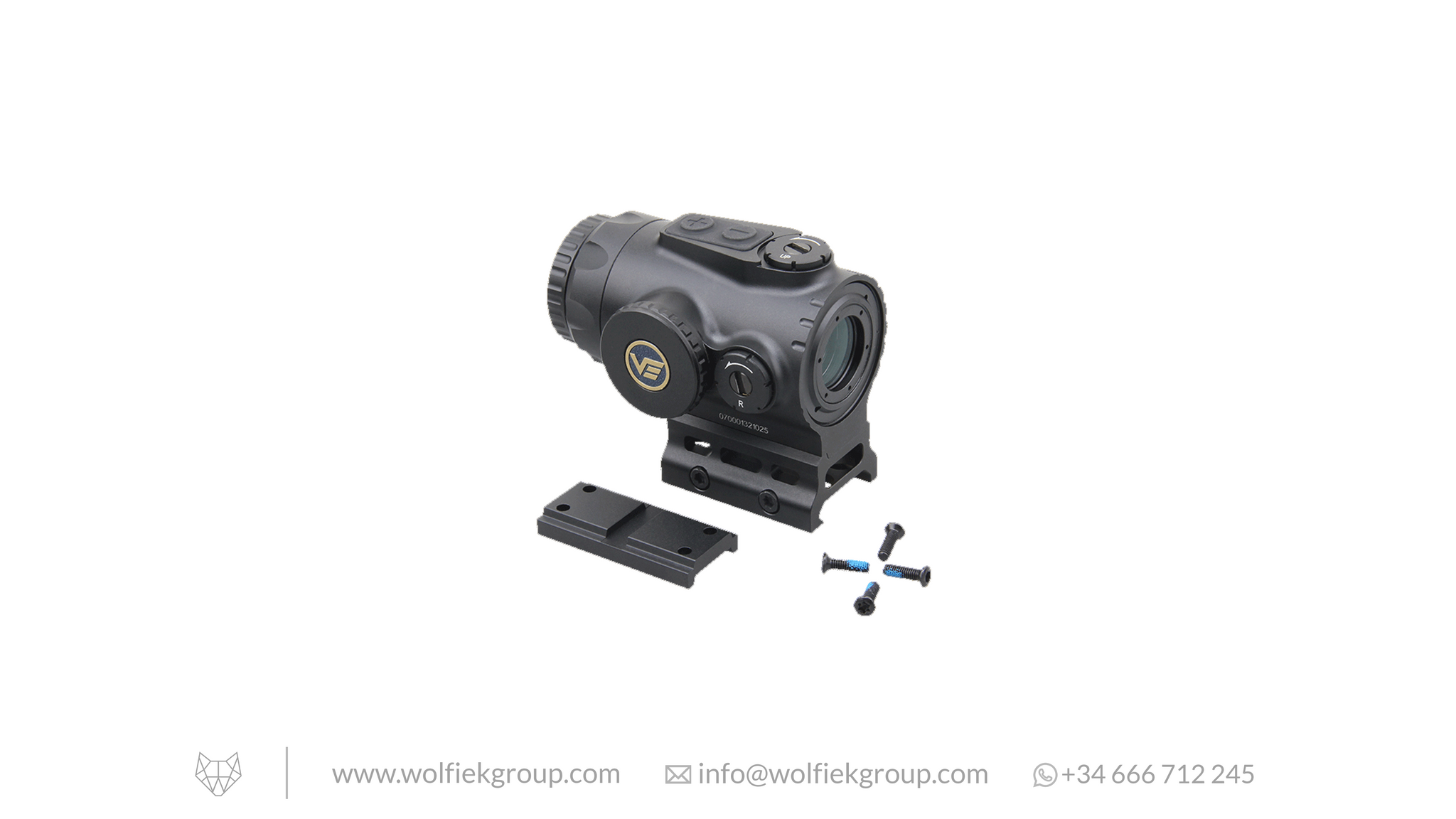

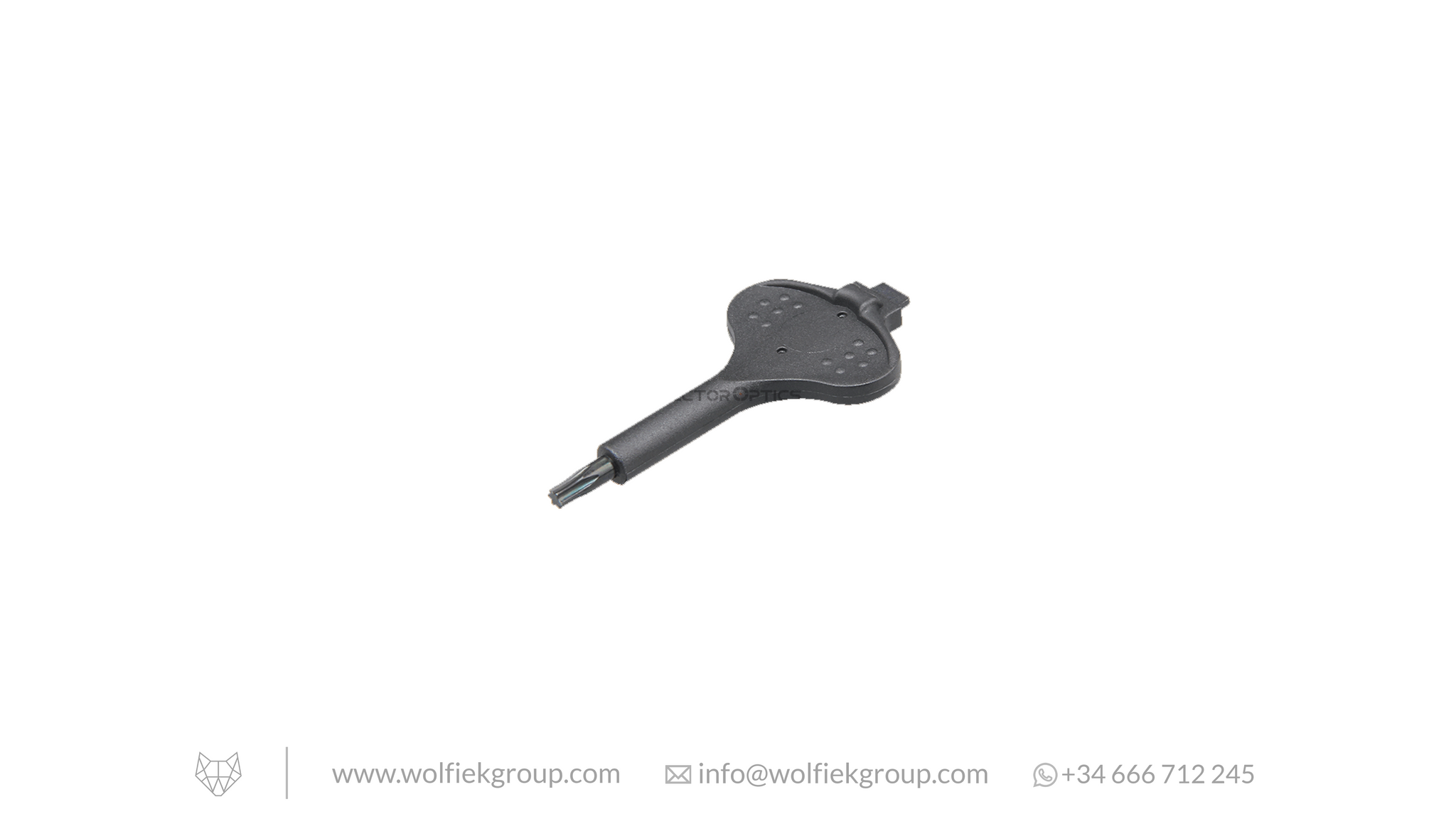

  • includes items: riser section, plastic wrench, hex key and cleaning cloth
