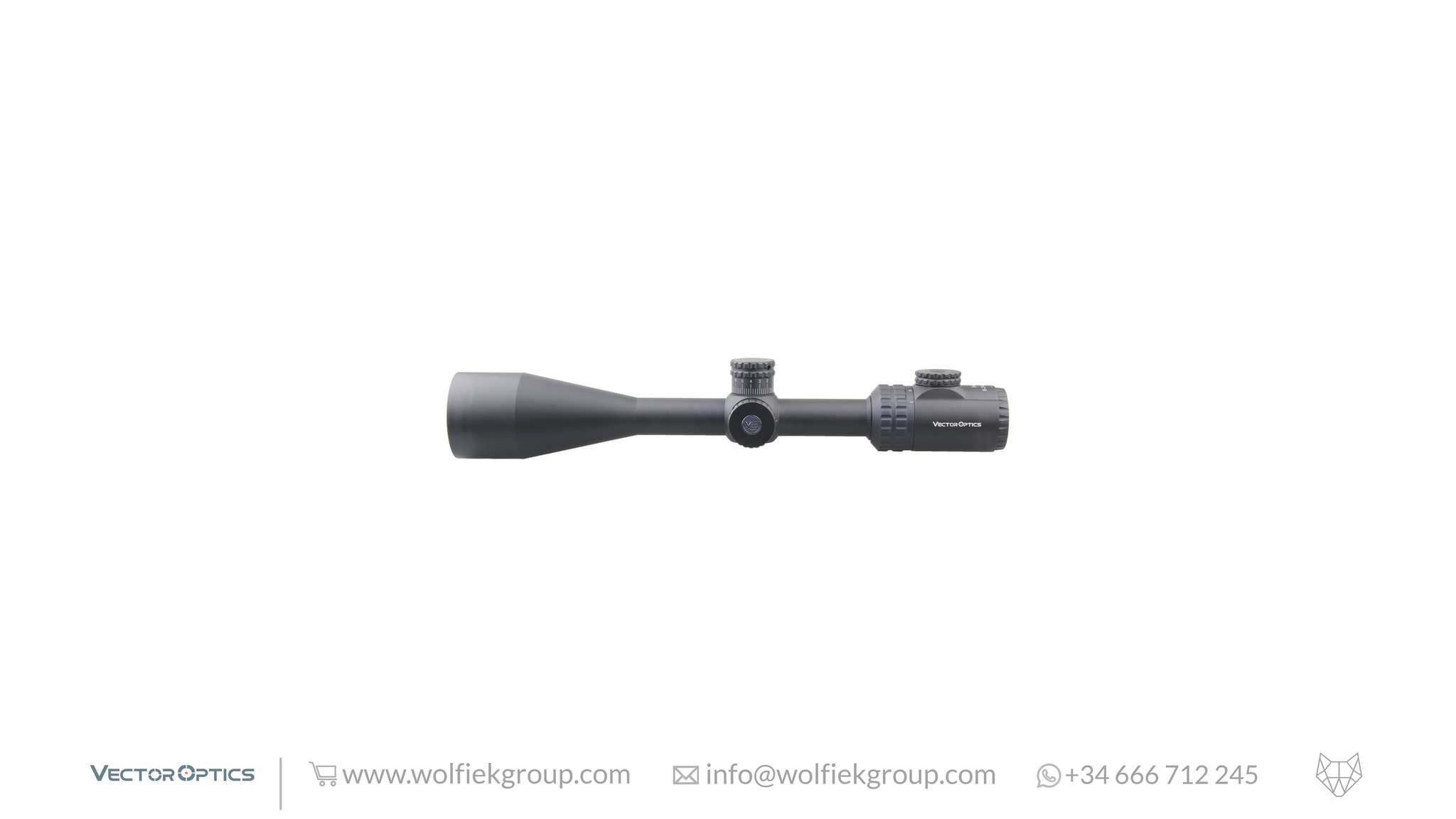

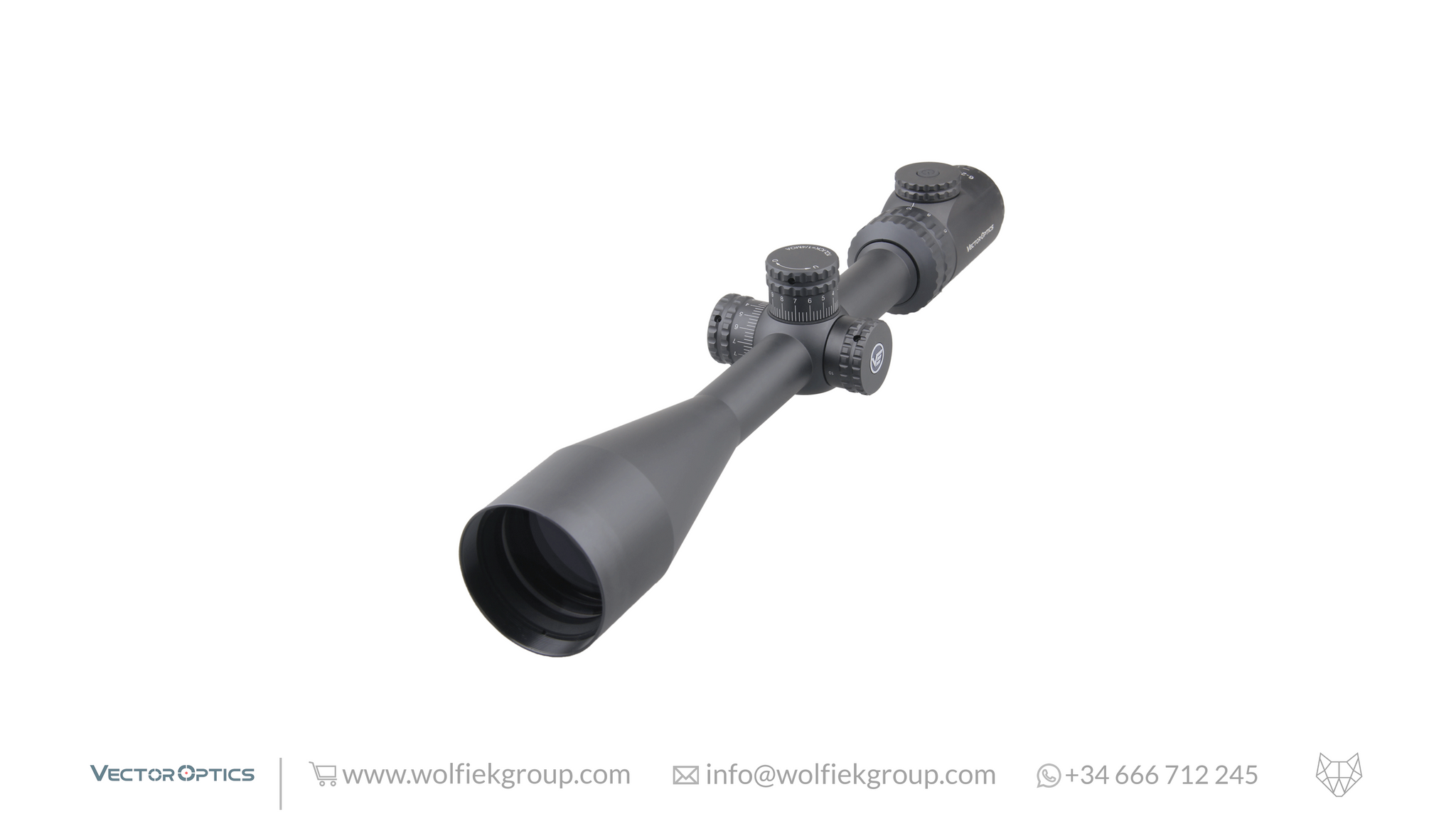

Vector Optics · Hugo 6-24x50GT SFP

MOUNTS: Weaver (22mm)

Item: SCOL-32

  • Magnification: 6-24x
  • Objective lens dia: 50mm
  • Ocular lens dia: 38mm / 1.5in
  • Ocular lens length: 60mm / 2.4in
  • Exit Pupil: 8.3-2mm
  • Optics Coating: Fully-multi coat
  • Field of View: 15.8-4.0 feet@100 yds
  • Eye Relief: 105--100mm / 4.1-3.9 in
  • Length: 360mm / 14.2 in
  • Weight: 680g / 24.0 oz
  • Tube Dia: 25.4mm 1“ monotube

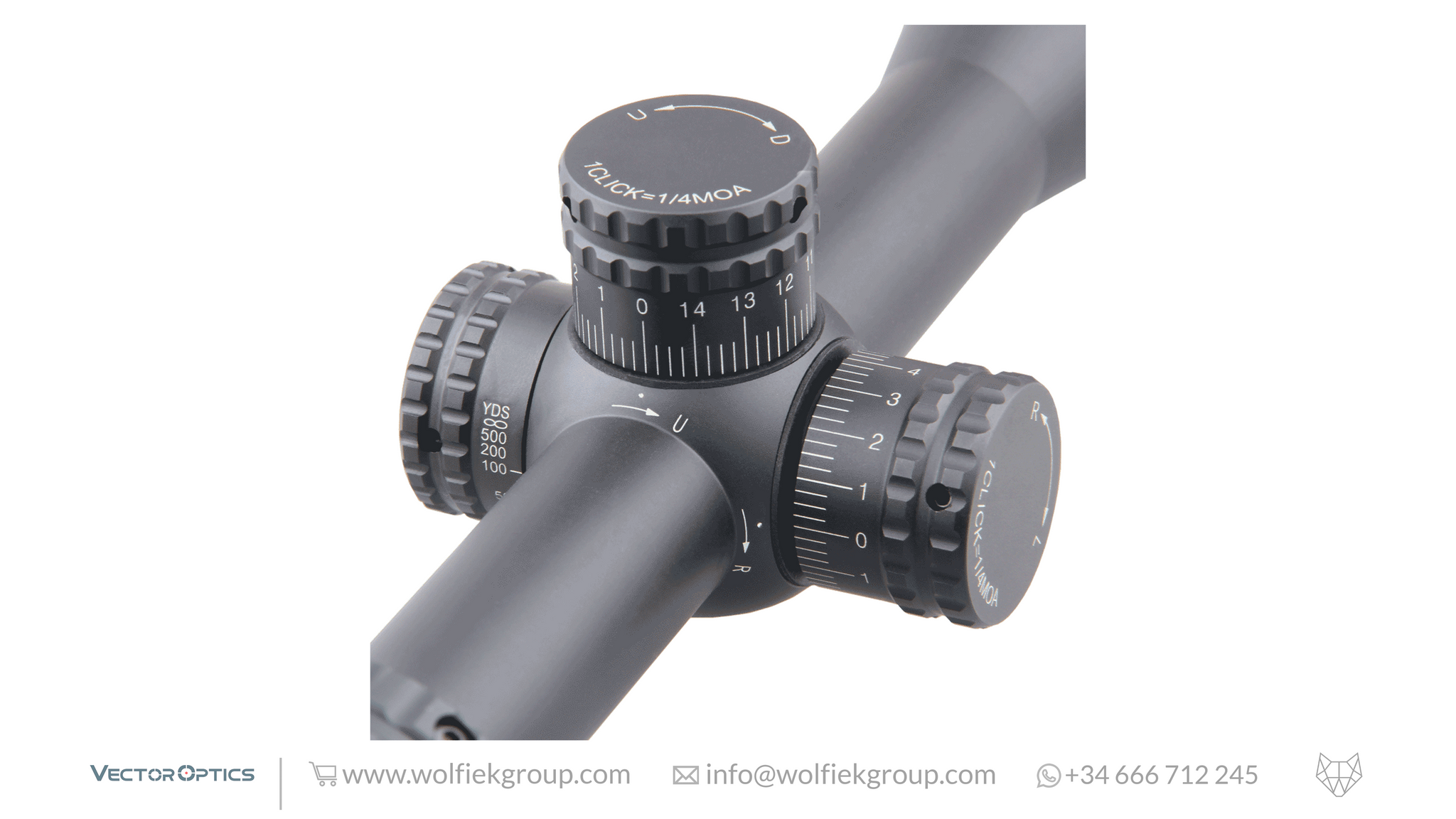

  • Click Value: 1/4 MOA
  • Elevation range: 40 MOA
  • Windage range: 40 MOA
  • Parallax setting: 10 yards to infinite

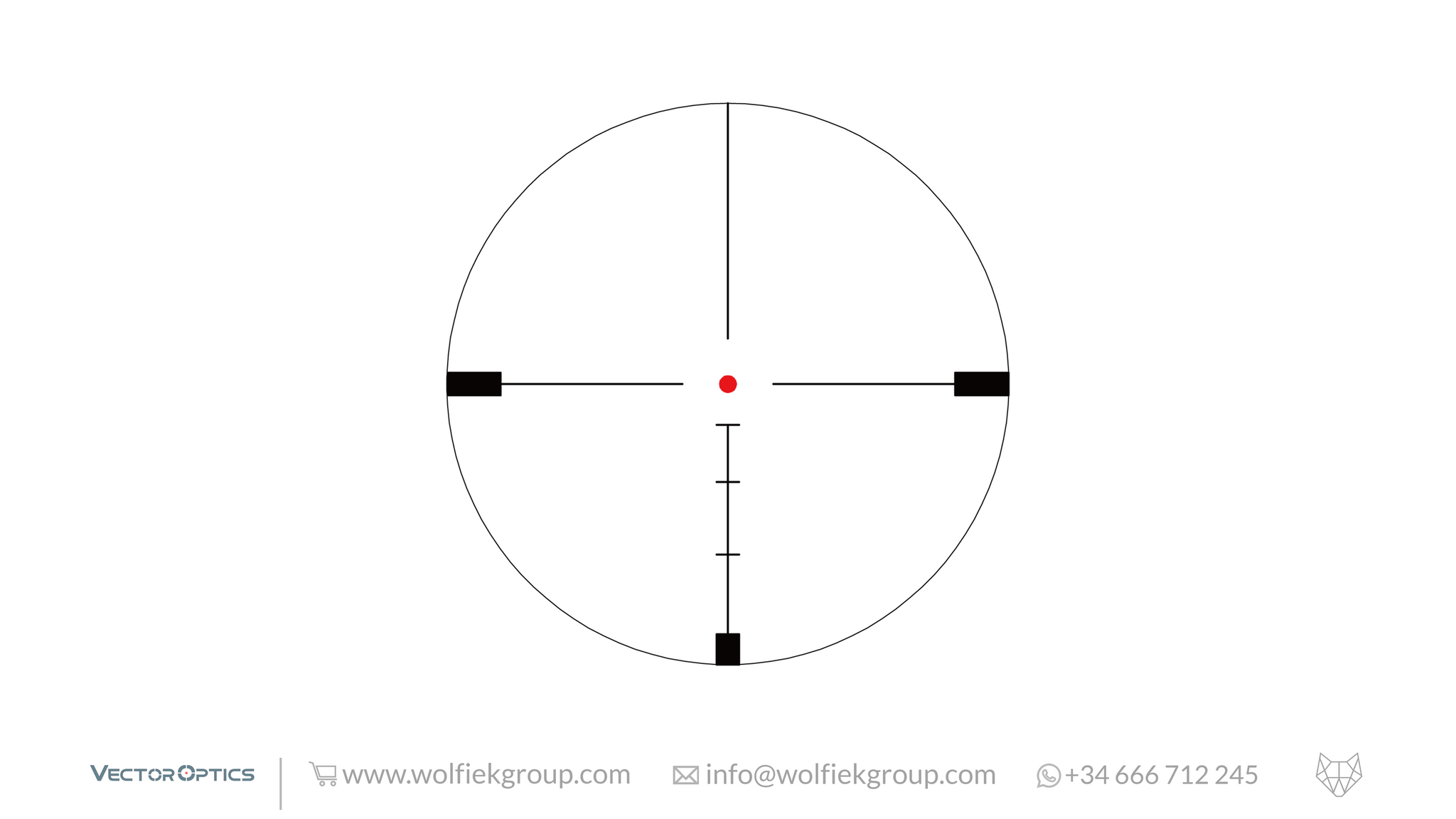

  • Reticle: VOI-10BDC
  • Illumination: 11 levels red+ 1 level NV
  • Battery Type: CR2032
  • BDC Reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range
  • Distance between objective lens part and middle turret: 58mm (2.3in)
  • Length of middle turret part: 37mm (1.5in)
  • Distance between middle turret part to power ring: 57mm (2.2in)
  • Side focus marks: 10, 15, 20, 50, 100, 200, 500 and infinite yds
  • Shock tested to 750g and waterproof
  • Fully nitrogen purged to eliminate any fogging of the lenses internally
  • High quality 6061 T6 aircraft grade aluminum
  • Diopter compensation from fast-focus eyepiece (+2 to -2)
  • Including items: flip-up caps, sunshade and cleaning cloth
  • Optional: weaver rings or dovetail rings
