MODEL 1 SCTM-55 MED

MODEL 1 SCTM-38 HIG

Vector Optics · Dovetail Scope Mounts 30mm

Vector Optics · Dovetail Scope Mounts 30mm

Vector Optics · Dovetail Scope Mounts 30mm

€29,00

Model 1
Model 2

Item: Medium SCTM-55 | Item: High SCTM-38
- Diameter: 30mm
- Height (bottom to ring center): Medium 32mm / 1.25" | High 38mm / 1.5"
- Weight (net): Medium 115g (4.0oz) | High 130g (4.6oz)
- Finish: black matte
- Material: 6061-T6 aluminum alloy
- Mount: 11-12mm dovetail
- Unique construction provides strength well
- Six torx screws per ring will hold your scope under any conceivable situations
- Perfect Alignment and Superior Accuracy
- Clamps in black matte and dark grey anodizing finish
- Fittings include: Hex key

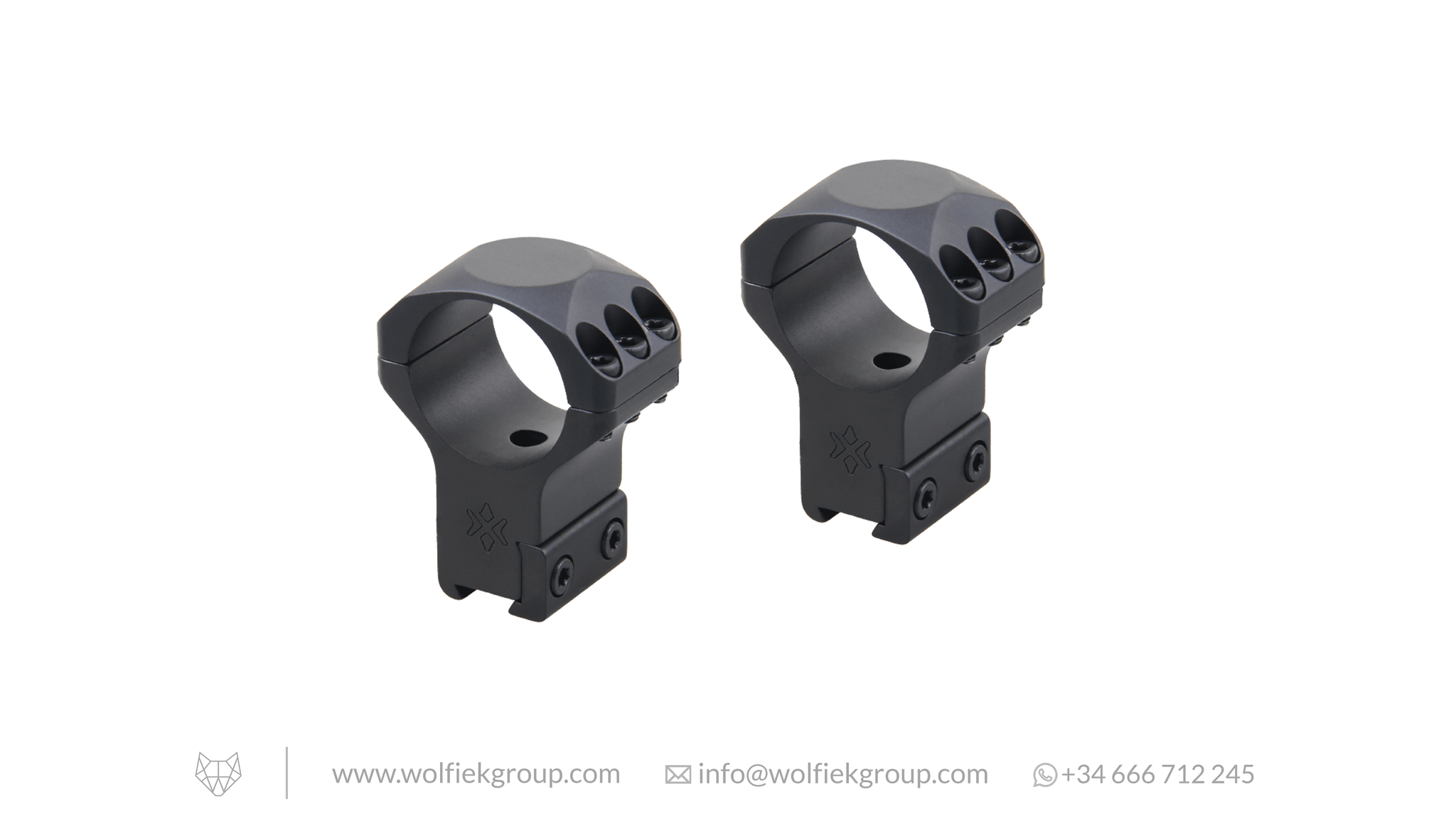

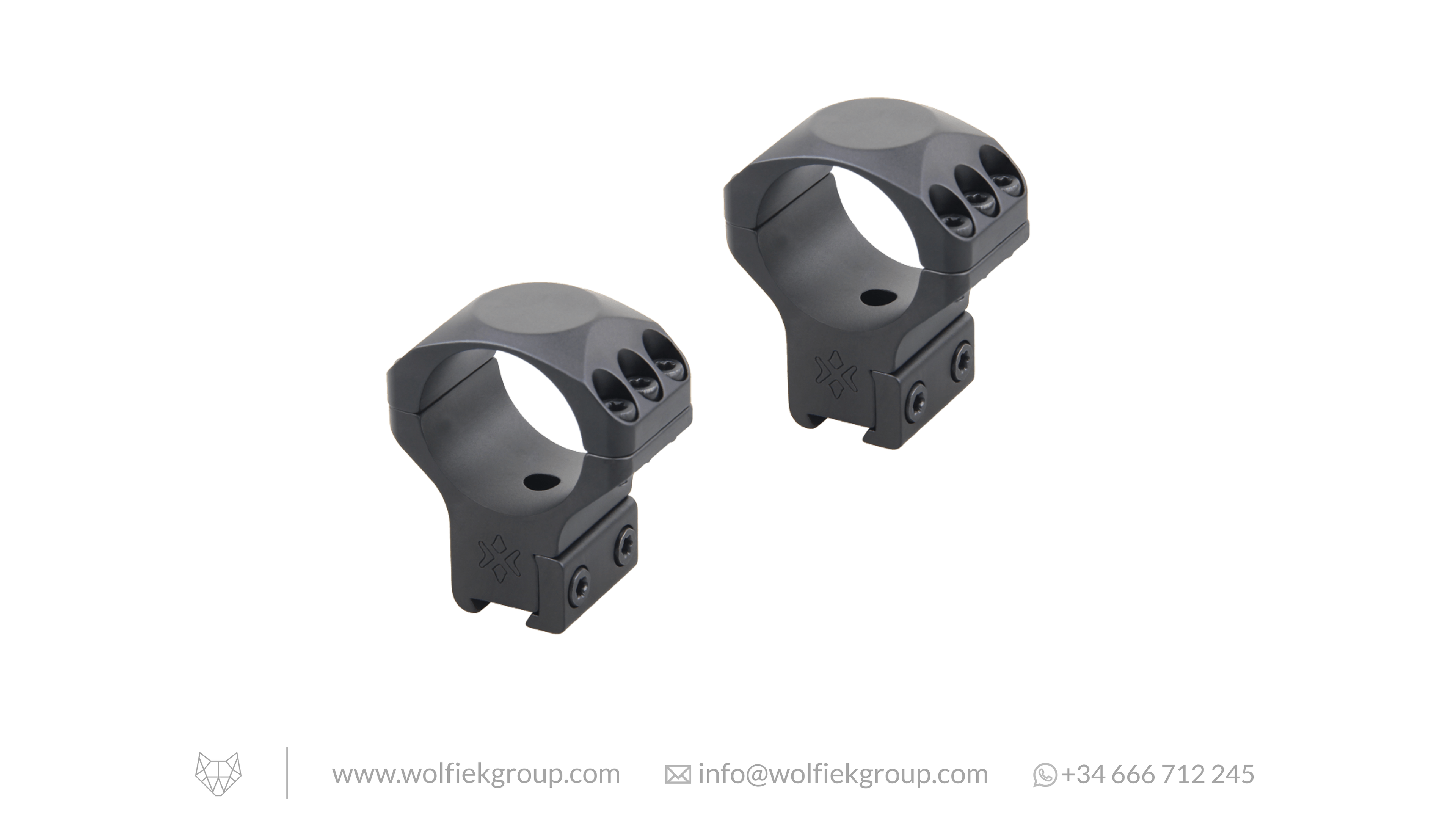

Item: Medium XASR-3005 | Item: High XASR-3006
- Diameter: 30mm
- Height (bottom to ring center):Medium 32mm / 1.25" | High 38mm / 1.5
- Weight (net): Medium 125g (4.4oz) | High 140g (4.9oz)
- Finish: Black matte
- Material: 6061-T6
- Mount: 11mm dovetail
- Unique construction provides strength well with steel cross-bolt
- Six torx screws per ring will hold your scope under any conceivable situations
- Perfect alignment and superior accuracy
- Do not use over 18in of torque on the scope rings
- Fittings include: Hex key
