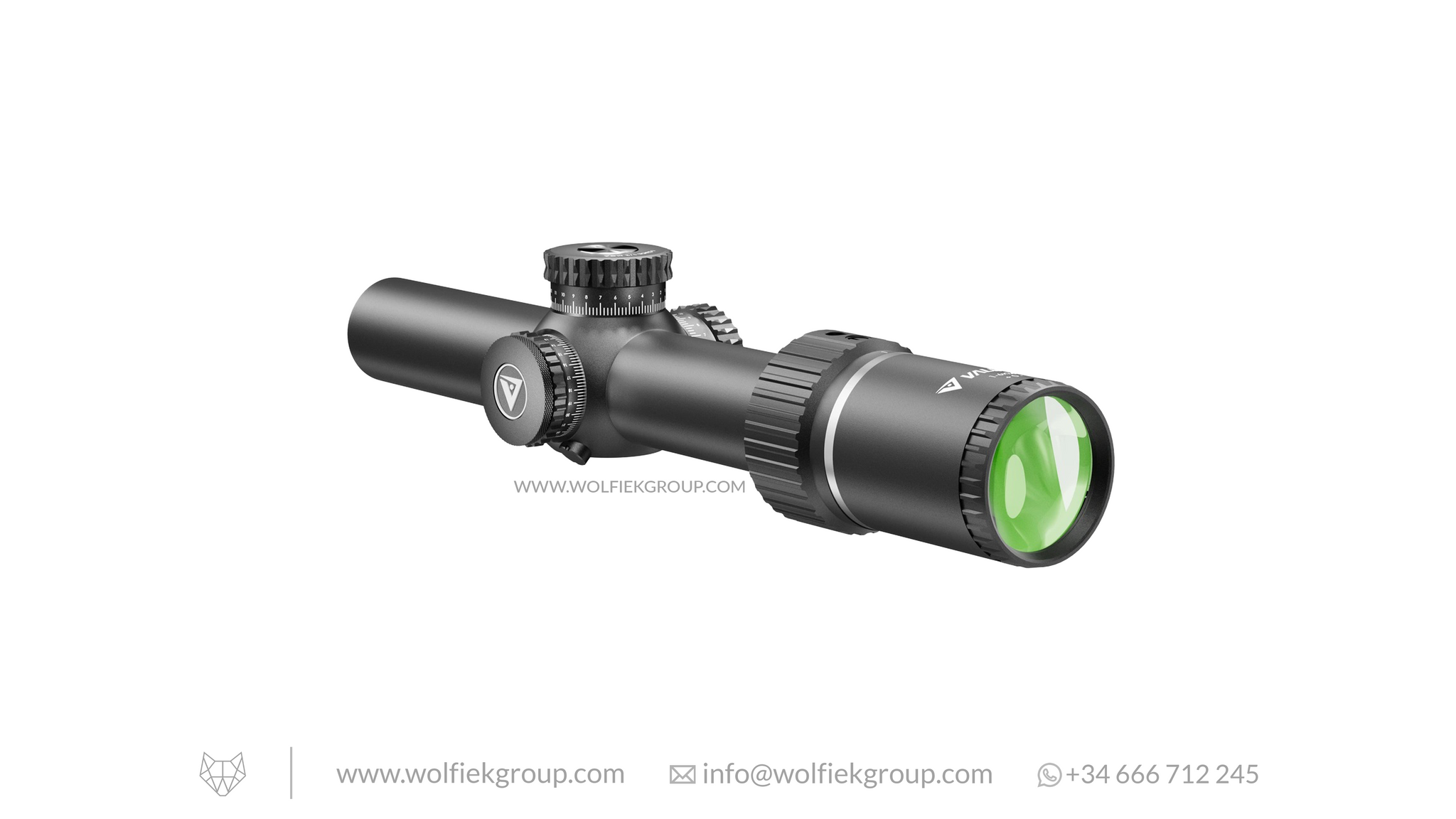

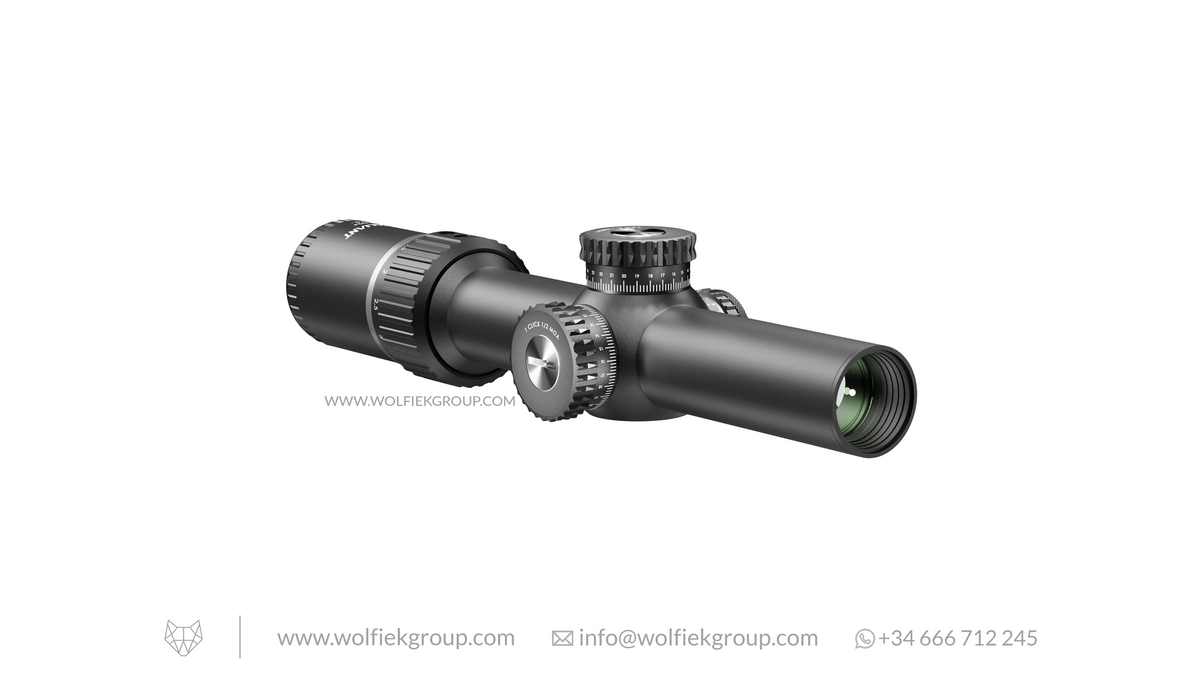

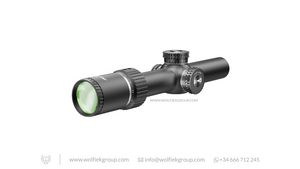

Item: VL3001 (6x Mil Tactical)
Tactical Magnification 1–6x is a perfect choice for tactical shooting and hunting at short to medium distances. Parallax is fixed at 100 yards. 24 mm objective lens with anti-reflective coating will provide clear and accurate image even in poor lighting conditions. Reticle is illuminated in 11 levels of intensity.
Magnification | 1 - 6x |
Field of view at 100 meters | 37.5 - 6.6 meters |
Diopter adjustment | -2.75 / +2.75 |
Eye relief | 85 - 88.5 mm |
Click Value at 100 yds | 1/10 MRAD per Click |
Main tube diameter | 30 mm |
Lens Coating | Multi-coated Green lense |

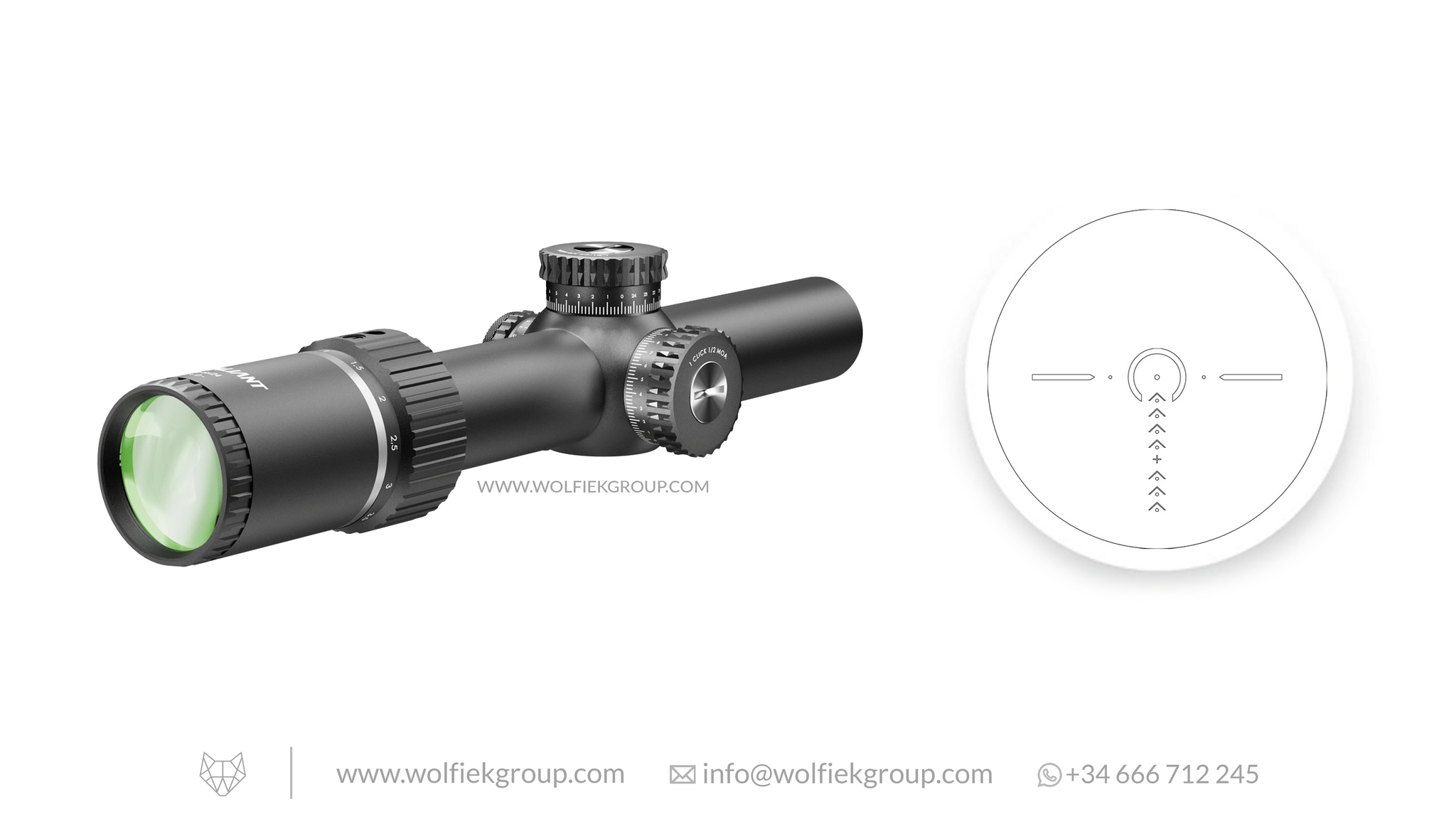

Reticle | Etched Glass |
Exit Pupil | 4 - 11.2 mm |
Parallax Correction | Fixed at 100 meters |
Resistance |
Waterproof / Shockproof / Fogproof
|
Turrets | Low profile |
Illumination | RGB |
Overal Length | 260 mm (10.2 in) |
Mounting Length | 177 mm (6.96 in) |
Weight | 480 g |
Parallax Type | Fixed |
