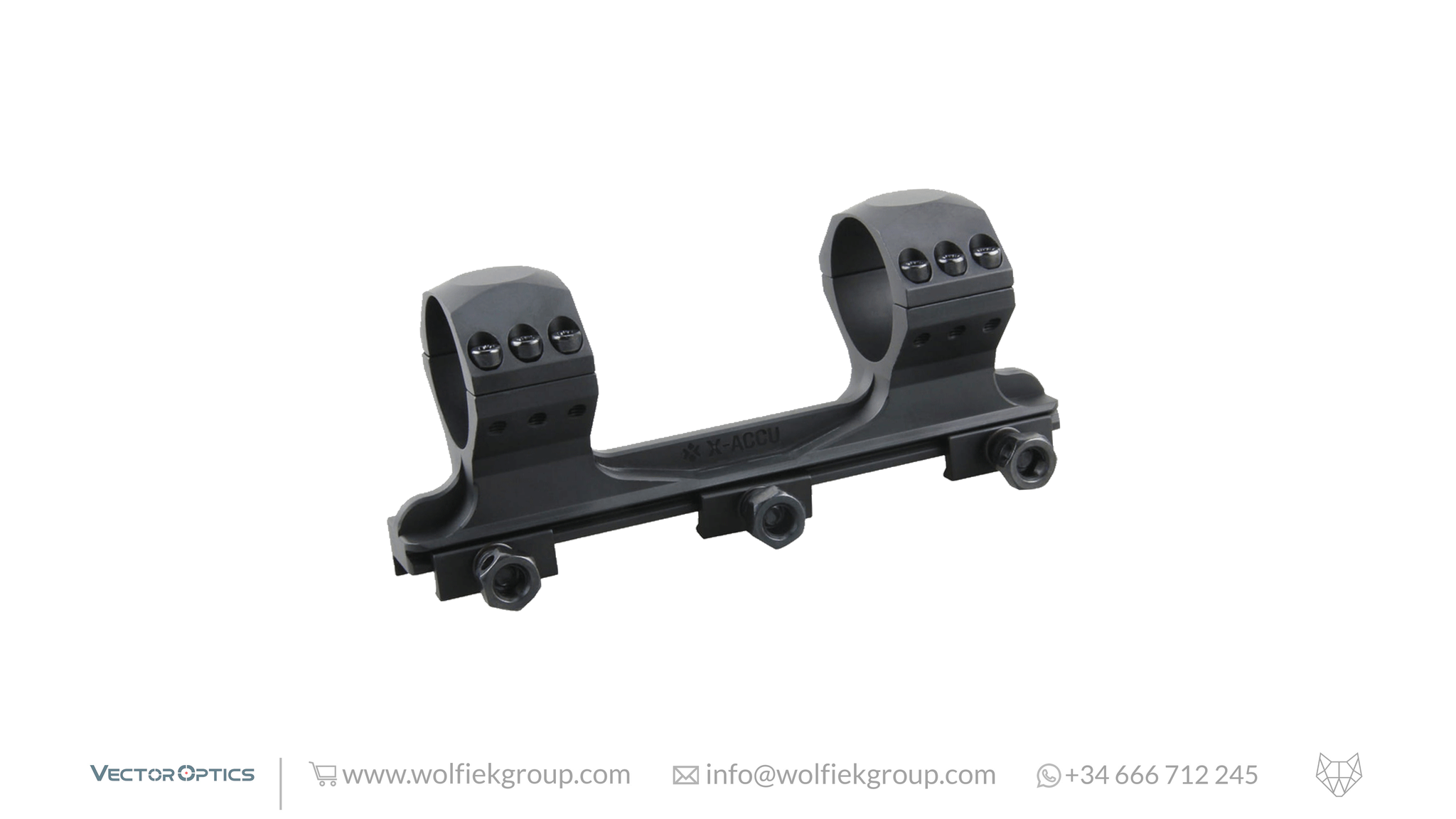

Vector Optics · Scope Mounts Weaver 34mm ONE-PIECE

MOA: 0 MOA
PROFILE: Medium
Item: 0 MOA  SCTM-60 | 20 MOA  SCTM-61
  • Diameter: 34mm
  • Overall Length: 154mm / 6.1"
  • Overall Height: 59mm / 2.3"
  • Mount Length: 154mm / 6.1"
  • Ring Width: 50mm / 2.0"
  • Central Height: 35mm / 1.4", bottom to center
  • Ring Length: 26mm / 1.0"
  • Gap Length: 70mm / 2.7"
  • Material: 6061-T6 aluminum alloy
  • Weight: 250g / 8.8oz
  • Mount: Picatinny
  • Finish: Hard anodizing in black matte
  • Screws per ring: 6
  • High-durability aluminum alloy in black matte, designed for big recoil calibers
  • Do not use over 18in of torque on the scope rings screws
  • Suggest 25in (can accept max 45in) torque force for big nut when installing the mount on the picatinny rail
  • 20MOA 6MIL Style and designed for hard and rigorous use
  • Items included: hex key
