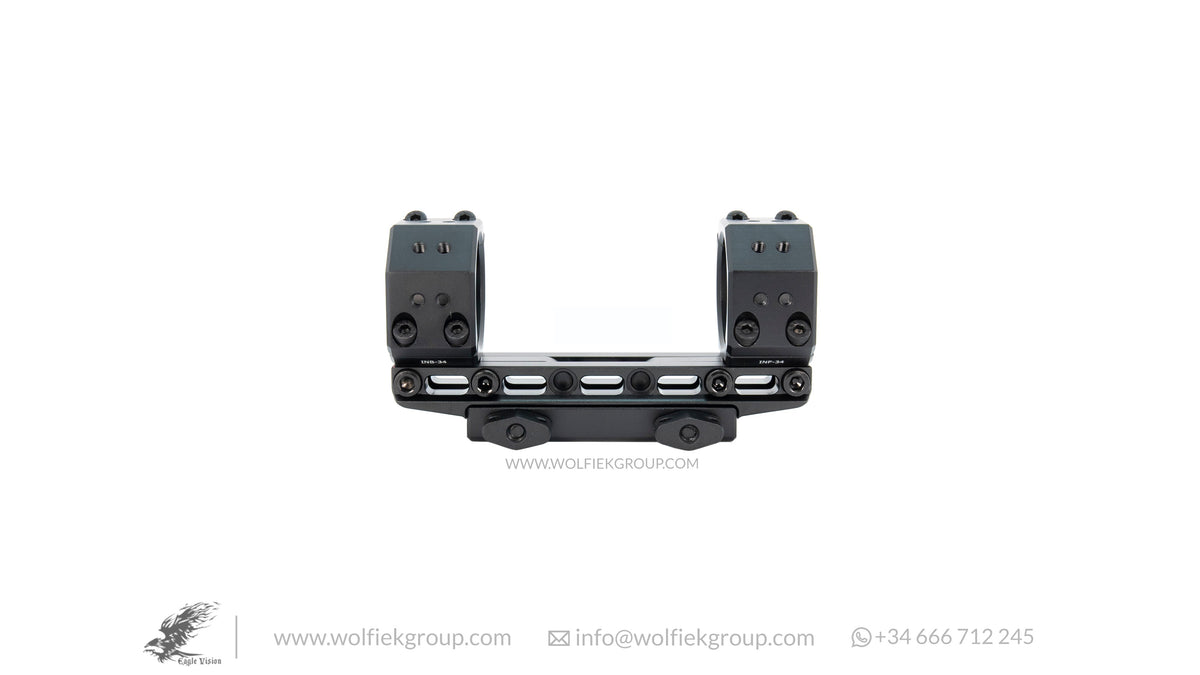

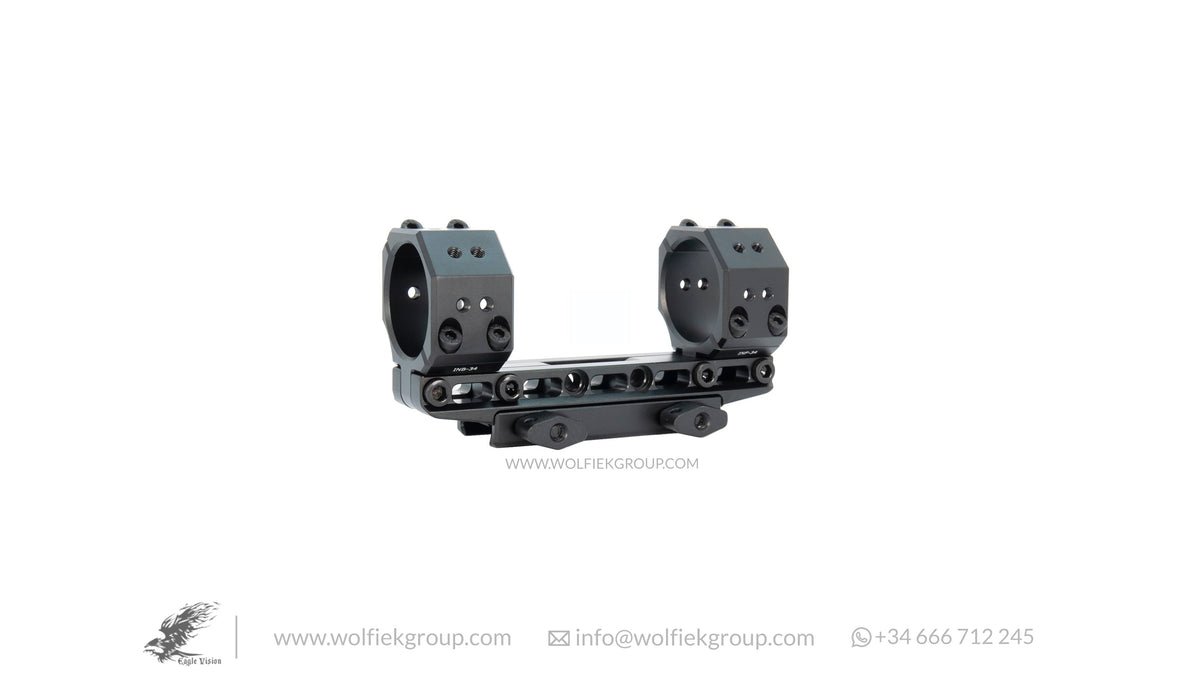

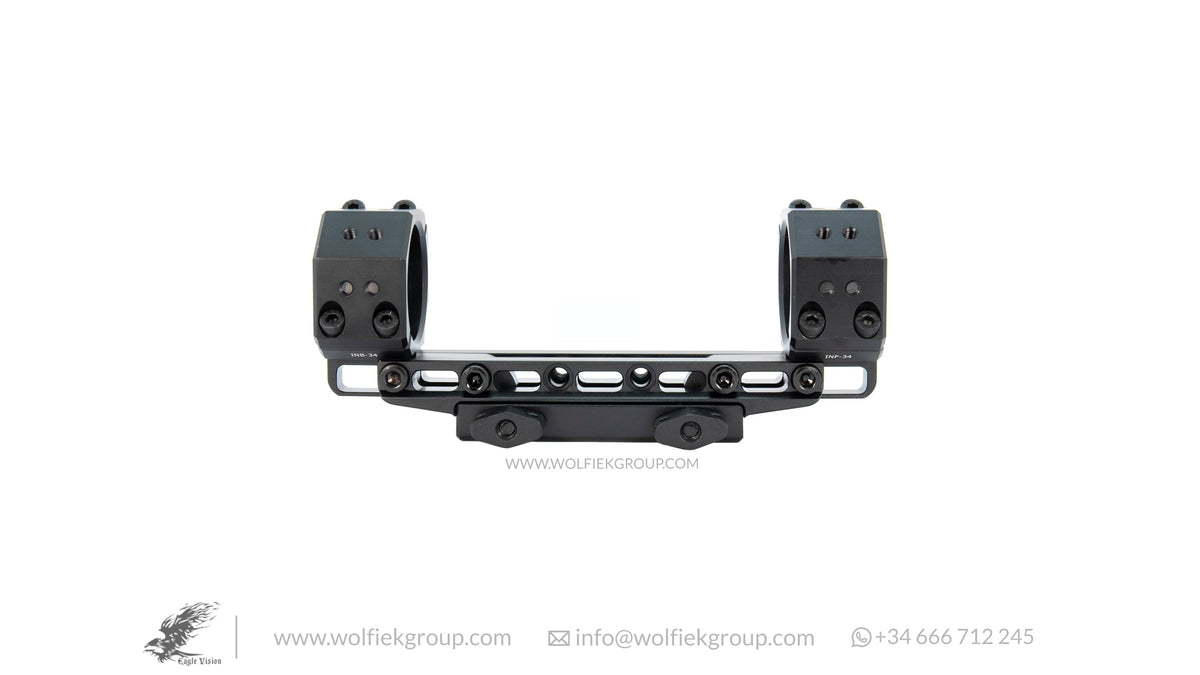

Eagle Vision · Picatinny Infinity Elevation ONE-PIECE Scope Mounts 34mm

This well-designed scope mount allows the scope to move vertically along a guided path. The mount is lockable in different positions using two screws.

The mount can be used as low profile or adjusted the to high profile too if your scope objective its too close to your rifle barrel or shroud.

This practical patent helps shooters who enjoy long-range shooting and often run out of adjustment clicks on their turrets.

The mount can also come handy if you have not been able to use your favorite scope due to lack of space between the rings or unusual position of your dovetail or picatinny rail on your gun.

The design of the mount is dedicated to people who want to improve their performance contrasting with what ordinary mounts allow to do. By keeping the front mount at its lowest and elevating the rear mount to the highest point, you can zero in your gun far beyond what standard mounts allow you to do, without using the clicks on your turrets, hence keeping the optical centre of your scope intact (ideal situation for long range shooting).

Please note: DO NOT use more than 4x elevation screws as you may damage your mount.

Details:

Height: 65 mm to 69.5 mm (adjustable)

Profil Height: 21 mm

Adjustable Height: 4.5 mm

Weight: 92 gm each one

Centre of the ring to the bottom of the rail: 38 mm in closed position

Centre of the ring to the bottom of the rail: 42.5 mm in opened position

Ring size: 34 mm

Rail size: 22 mm picatinny
